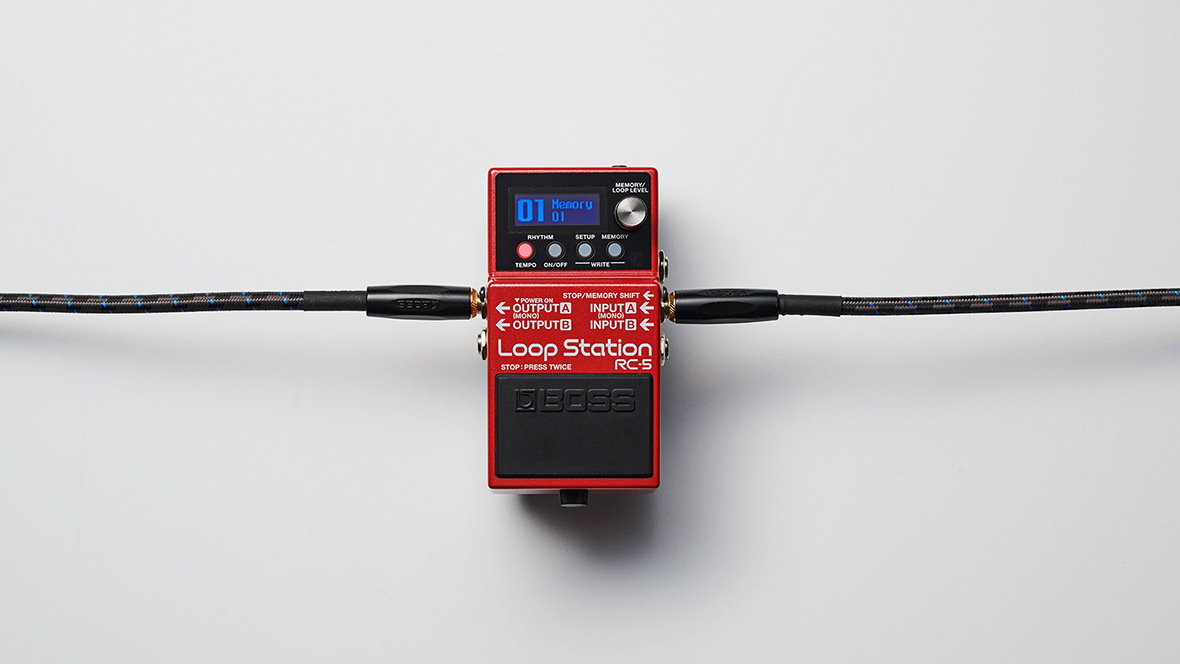

Boss RC-5

Description

Standard Features

• Advanced BOSS looping features in a compact footprint

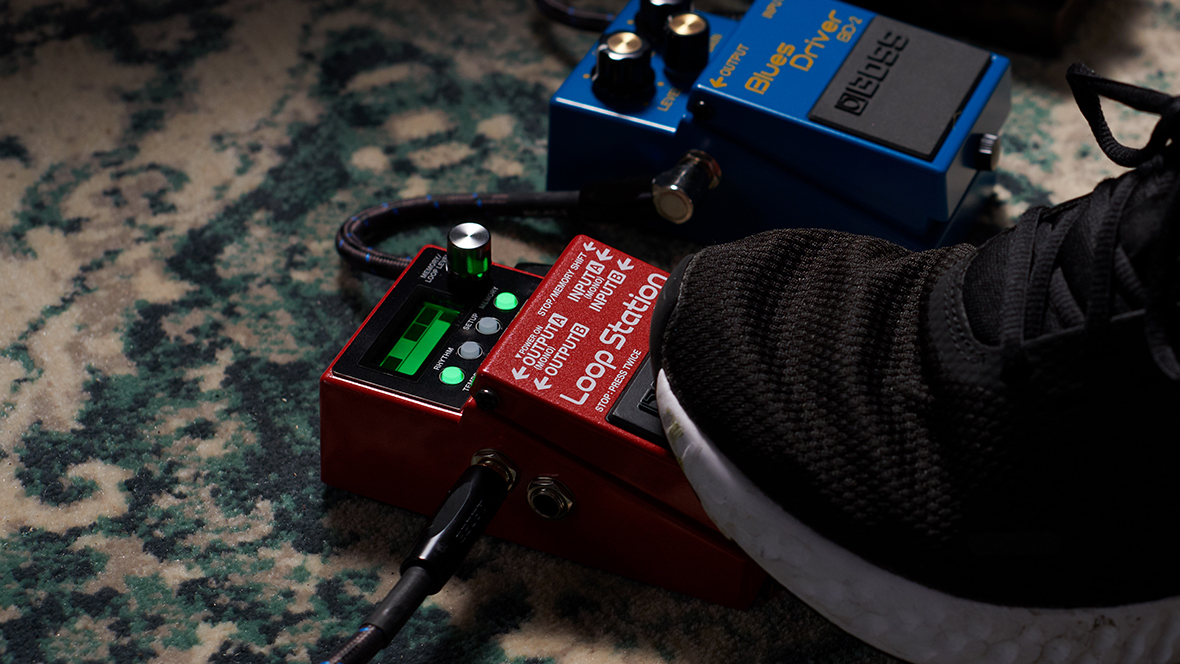

• Class-leading sound quality with 32-bit AD/DA and 32-bit floating-point processing
• Stereo looper engine with 13 hours of recording time
• LCD with multi-color backlight for viewing loop status and editing parameters
• Reverse function for infusing loops with interesting textures
• Seven different drum kits and 57 preset rhythms with A/B variations

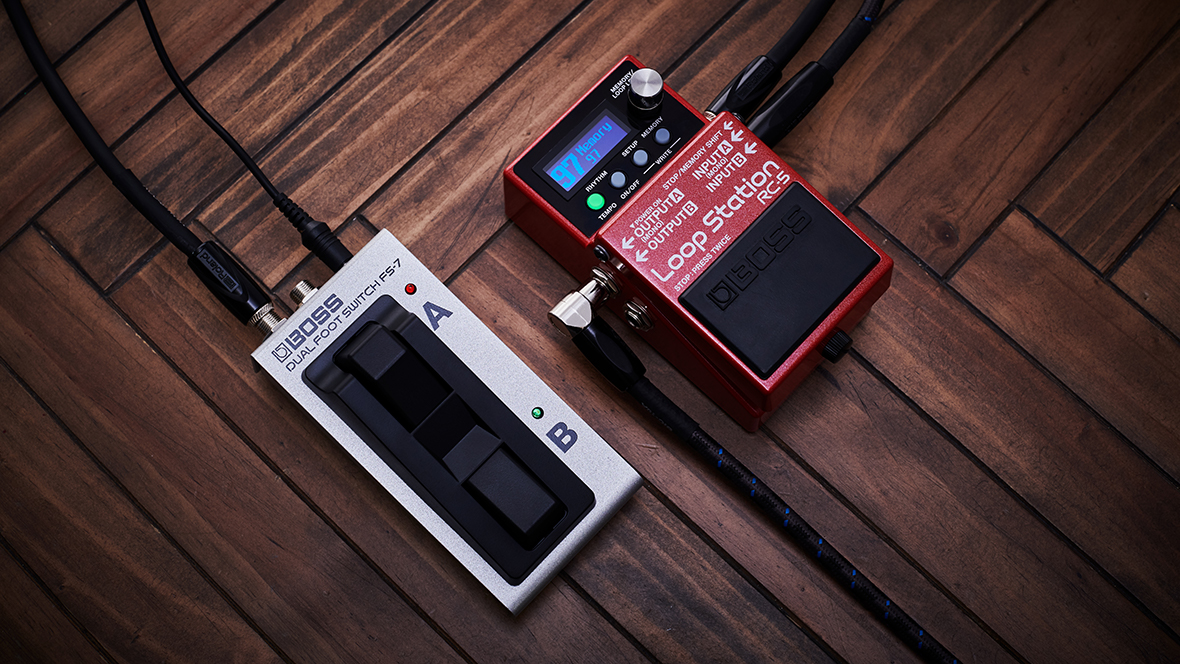

• Support for expanded control via external footswitches, an expression pedal, or MIDI
• Full MIDI I/O provided with space-saving mini TRS jacks (BMIDI-5-35 adaptor cable available separately)
• Onboard storage for 99 phrase memories
• Back up and load WAV loops via USB

SPECIFICATIONSSampling Frequency44.1 kHzAD/DA Conversion32 bitsProcessing32-bit floating pointRecording/PlaybackNumber of Track: 1
Data Format: WAV (44.1 kHz, 32-bit float, stereo)
Maximum Recording Time: Approx. 1.5 hours (1 track), Approx.13 hours (total of All memories) Rhythm Type57 Patterns x 2 VariationsRhythm Kit7 typesEffectReverb (only for rhythm part)Memory99Nominal Input LevelINPUT A/MONO, B: -20 dBuInput ImpedanceINPUT A/MONO, B: 1 M ohmNominal Output LevelOUTPUT A/MONO, B:-20 dBuOutput ImpedanceOUTPUT A/MONO, B: 1 k ohmRecommended Load ImpedanceOUTPUT A/MONO, B: 10 k ohms or greaterBypassBuffered bypassControlsMEMORY/LOOP LEVEL knob, MEMORY button, SETUP button, RHYTHM ON/OFF button, RHYTHM TEMPO button, Pedal switchDisplayGraphic LCD (96 x 32 dots, RGB backlit LCD)ConnectorsINPUT A/MONO, B jacks: 1/4-inch phone type
OUTPUT A/MONO, B jacks: 1/4-inch phone type
STOP/MEMORY jack: 1/4-inch TRS phone type
USB port: USB B type
MIDI (IN, OUT) jacks: stereo miniature type
DC IN jackPower SupplyAlkaline battery (9 V, 6LR61 or 6LF22)AC adaptor (PSA series: sold separately)Current Draw170 mAExpected battery life under continuous useAlkaline: Approx. 2 hours
*These figures will vary depending on the actual conditions of use.AccessoriesOwner’s manual
Leaflet (“USING THE UNIT SAFELY,” “IMPORTANT NOTES,” and “Information”)
Alkaline battery (9 V, 6LR61 or 6LF22)Options (sold separately)AC adaptor: PSA-S series
Footswitch: FS-5U
Dual Footswitch: FS-6, FS-7
Expression Pedal: FV-500H, FV-500L, EV-30, Roland EV-5
TRS/MIDI connecting cable: BMIDI-5-35SIZE AND WEIGHTWidth73 mm
2-7/8 inchesDepth129 mm
5-1/8 inchesHeight56 mm
2-1/4 inchesWeight (including battery)450 g
1 lb
