Description

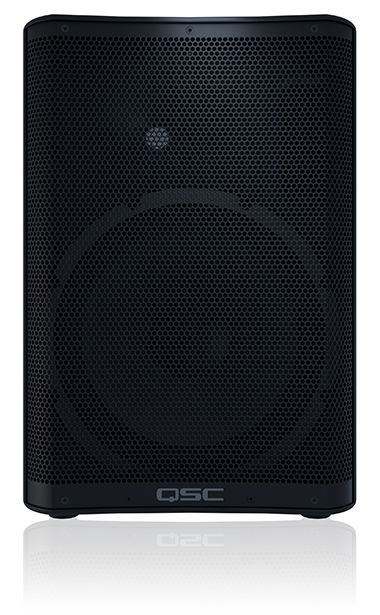

| Model | CP12 |
| Configuration | Two-way active loudspeaker |
| LF Transducer: | 305 mm (12 in), cone |
| HF Transducer: | 35.6 mm (1.4 in) compression driver |
| Frequency Response (-6 dB) | 49 – 20 kHz |
| Frequency Range (-10 dB) | 47 – 20 kHz |
| Nominal Coverage Angle: | 75° Axisymetric |
| Maximum Rated SPL1: | 126 dB |
| Amplifier: | Class D Peak: 800 W (LF), 200 W (HF) |
| Controls: | Power 2 × Gain Mic Boost Push Switch 6-way Contour Selection Switch |
| Indicators: | Power LED 2 × Input Signal LED Input B MIC selected LED Limiter active LED |
| Connectors: | 2 × locking XLR/F ¼” combo (Line Input and Mic/Line input) 1 × 3.5 mm TRS (Stereo Input) 1 × XLR/M (Mix Output) 1 × IEC power connector |
| AC Power Input: | Universal power supply 100 – 240 VAC, 50 – 60 Hz |
| AC Power Consumption (1/8th Power): | 100 VAC, 0.75A – 240VAC 0.31A |
| Enclosure Material: | Polypropylene |
| Attachment Points: | M8 threaded insert |
| Color: | Black (RAL 9011) |
| Grille: | 18 Gauge powder-coated steel |
| Speaker Dimensions (H×W×D): | 516 × 350 × 323 mm 20.3 × 13.8 × 12.7 in |
| Carton Dimensions (H×W×D): | 430 × 430 × 604 mm 17 × 17 × 23.8 in |
| Net Weight: | 13.7 kg / 30.3 lb |
| Shipping Weight: | 16.5 kg / 36.4 lb |
| Regulatory: | EMC, UL, CB |
| Optional Accessories: | CP12 Tote, CP12 Outdoor Cover, CP12 Yoke |
