Rolls RA170 70-Volt Power Amplifier

$295.00 $225.00

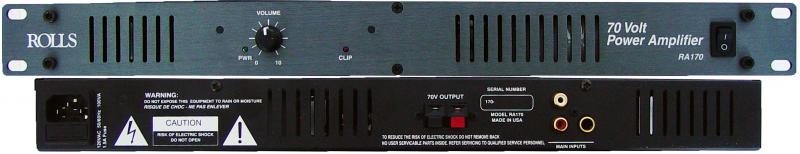

The RA170 Power Amplifier was designed especially for the installation contractor. The RA170 is a single rack-space, mono unit with a choice of an RCA or 1/4″ unbalanced input. The 70 volt speaker outputs are provided via spring-loaded terminals – no transformer is required for speaker connection. The front panel includes a Power indicator LED, a Volume control, and two Clip LEDs which indicate circuitry overload. The output circuitry is protected from momentary shorting and excessive load by a specially designed protective circuit.

In stock

Category:

Description

  • Recommended Load: 70 Volt line (70 Watts maximum)
  • Frequency Response: 70Hz to 20 kHz
  • Equiv. Input Noise: 100 microVolt typical, A weighted 600 Ohm input
  • S/N Ratio: 114 dB @ 70 Watts
  • Gain: 40 dB
  • Input Impedance: 47 k Ohms
  • Size (W x H x D): 19″ x 1.75″ x 5″ (48 x 4.5 x 12.7cm)
  • Weight: 5.5 lbs (2.5 kg)
  • 70 Watts of clean amplification into 70 V system
  • Spring-loaded output terminals
  • Front-panel heat sinking

Additional information

Weight 8 lbs
Dimensions 15 × 12 × 6 in
