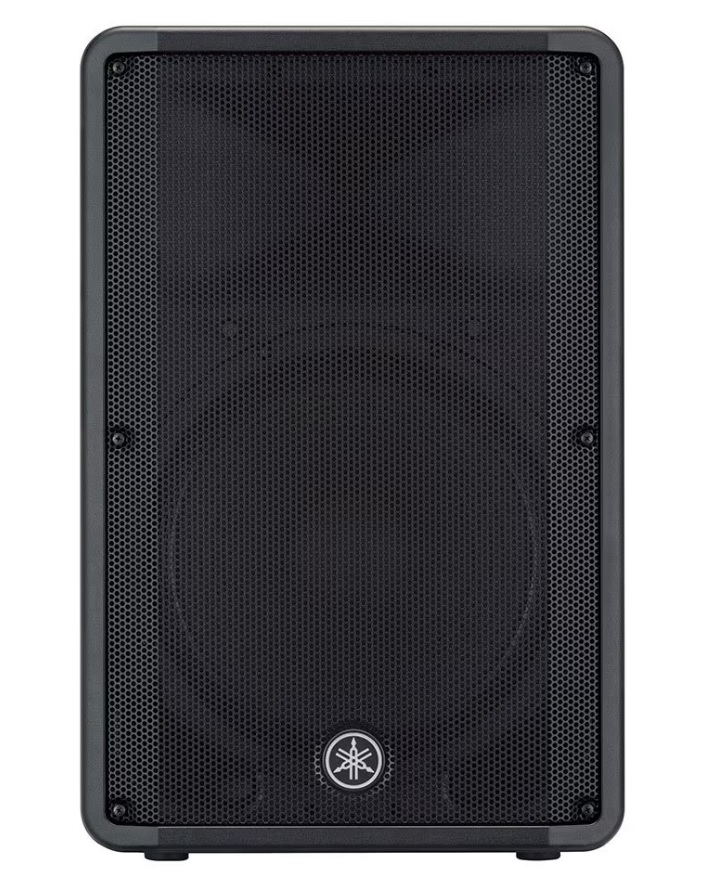

Yamaha CBR15 1000W 15 inch Passive Speaker

Yamaha CBR15 15″ Passive Loudspeaker at a Glance:

• Ideal for small- to mid-size venues
• Great sound at any volume level
• Use as a main speaker or as a floor monitor

Ideal for small- to mid-size venues

With 500-watts of RMS power handling and lightweight components, the Yamaha CBR15 is perfect for small- to mid-size venues. Whether you’re in a band, a gigging DJ, or run a sound-for-hire rig, the CBR15 will serve you well in a variety of applications.

Great sound at any volume level

The Yamaha CBR15 puts out full, punchy sound at any volume level thanks to two specific components. An extremely sensitive LF driver puts out powerful bass even when you’re not driving the speaker hard. And when you do want to push your system to the max, an HF-protection circuit prevents excessive input signals from damaging the tweeter, so you get clear sound throughout the entire volume range.

Use as a main speaker or as a floor monitor

Yamaha designed the CBR15’s cabinet with a 50-degree wedge angle. This allows you to place the speaker on its side and angle it up for use as a stage monitor. Especially if you’re equipping your school or church with PA gear, you’ll appreciate the dual-function versatility of the Yamaha CBR15.

Yamaha CBR15 15″ Passive Loudspeaker Features:

• Passive loudspeaker with lightweight plastic cabinet
• Impressive 500W RMS power handling
• 1/4″ and speakON inputs for flexible connectivity
• HF-protection circuit prevents tweeter damage due to excessive signal levels
• Highly-sensitive LF driver puts out full bass even at lower volumes

Tech Specs

• Powered:No
• LF Driver Size:1 x 15″
• HF Driver Size:1.4″
• Power Rating:500W
• Total Power:1000W
• Inputs:1 x 1/4″, 1 x speakON
• Impedance:8 ohms
• Frequency Range:46Hz-20kHz (-10 dB)
• Crossover Frequency:2kHz
• Maximum Peak SPL:126dB
• Horizontal Coverage Angle:90 Degrees
• Vertical Coverage Angle:60 Degrees
• Enclosure Material:Plastic
• Mounting Options:Pole Mount with 1.37″ socket, M8 Fly Points: 2 x Bottom, 1 x Rear
• Height:27.6″
• Width:17.9″
• Depth:14.9″
• Weight:39 lbs.
• Manufacturer Part Number:CBR15
